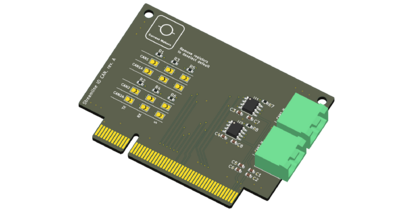

Streamline IO CAN is a dual CAN bus transceiver based on two NXP TJA1051 ICs.
Schematics
Selection jumpers
CAN Pins
The two CAN transceivers can be connected to different pins. By default one set of pins are selected by a 0 Ohm resistor. To select another pin, remove the resistor first and then short the relevant solder jumper.
CAN bus termination

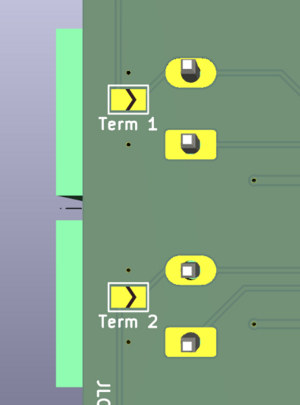

CAN buses have to be terminated with a 120 Ohm resistor and normally this will be done on the actual bus. But it can (pun intended) be done on the blade by shorting the jumpers on the backside.
In order to add the termination resistor, simply short the relevant solder jumper.
